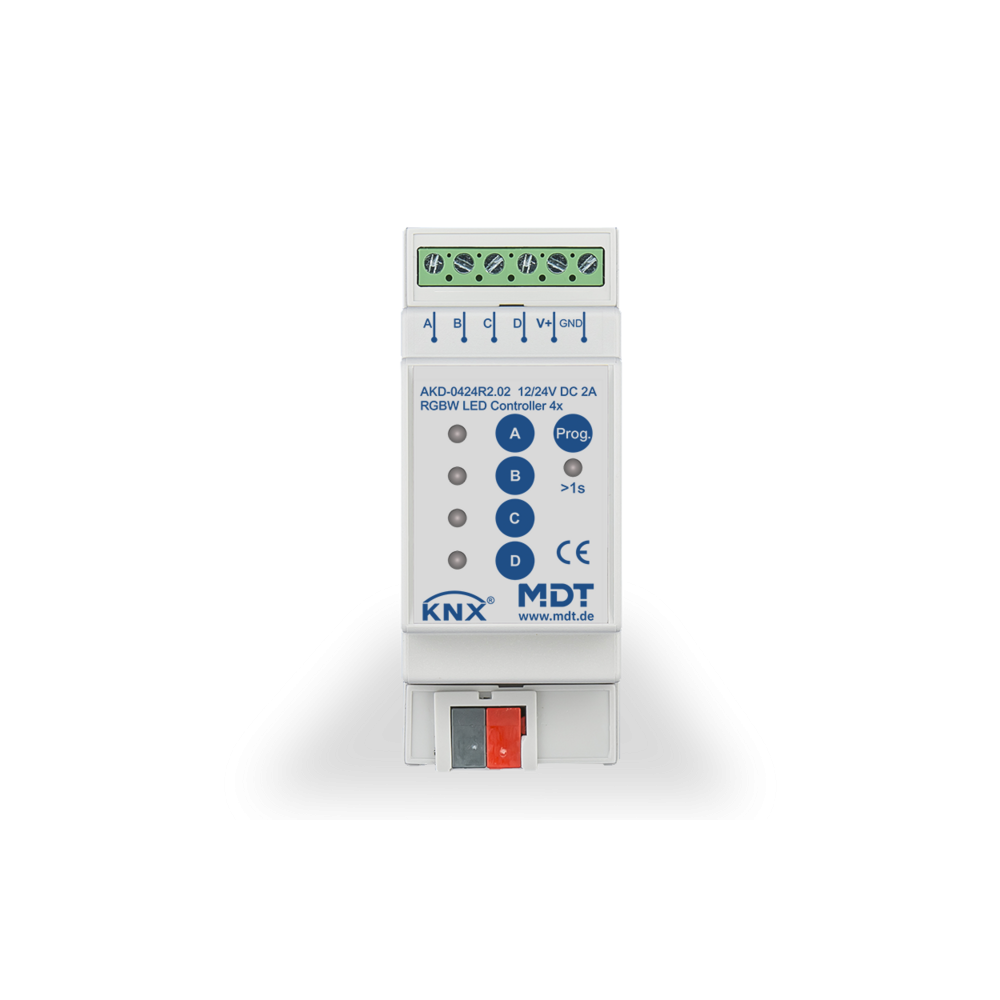

KNX LED RGBW dimmer, 4 channels, 4A, 12/24VDC, 4 HP,

The MDT AKD-0424R.02 is a KNX LED controller for dimming 12/24V DC constant-voltage LEDs, such as single-colour LED spots, RGB(W) strips or Tunable White lighting.

Its 4 individually adjustable outputs allow flexible lighting control depending on the installation type. The device supports 4 x white, RGB, RGBW and Tunable White operating modes, as well as absolute and relative dimming in HSV and RGB colour spaces.

It offers numerous advanced functions, including selectable dimming curve, PWM frequency up to 1000 Hz, global and individual dimming speeds, predefined sequences, Dim2Warm, dynamic daylight control HCL, and day/night function.

The dimmer also includes overcurrent and temperature monitoring. The AKD-0424R.02 model provides 4A per channel and an intelligent 16A relay output for switching the external LED power supply.
